接地极

咨询热线:0371-56581311

立即咨询其他咨询

详细信息

Chemical Ground Electrode

ECRV102Q4UB



Chemical ground electrodes provide a low impedance ground in locations of high soil resistivity and dry soil conditions. Used in conjunction with a Bentonite backfill and ERICO’s unique GEM material, the ERICO chemical ground rod electrode systems provide a method to improve soil resistivity directly surrounding the electrode, and can replace multiple conventional ground rods. It maintains a low ground resistance, maintenance-free installation that dissipates lightning energy and other dangerous electrical fault currents, even in sandy or rocky soil conditions.
chemical rods.jpg

The chemical ground electrode is useful for providing an effective earth in poor soil conditions where space for electrodes is limited. Applications include telecommunications, power generation and distribution, commercial and industrial, manufacturing, transportation (rail and aviation), lightning protection, recreational facilities, and defense. The ERICO chemical ground rod electrode systems are most effective when installed as part of a total system that includes high conductivity backfill materials, access/inspection wells, and permanent, reliable ERICO® CADWELD® connections. They may be installed either vertically or horizontally.

Features

  • Contains natural electrolytic salts, which permeate into the surrounding soil to condition the soil and increase its conductivity
  • Easy connection to ground electrode conductor using the factory provided pigtail (up or down orientation)
  • Provides decades of reliable services due to rugged construction and high-quality metals with a 30-year minimum service life

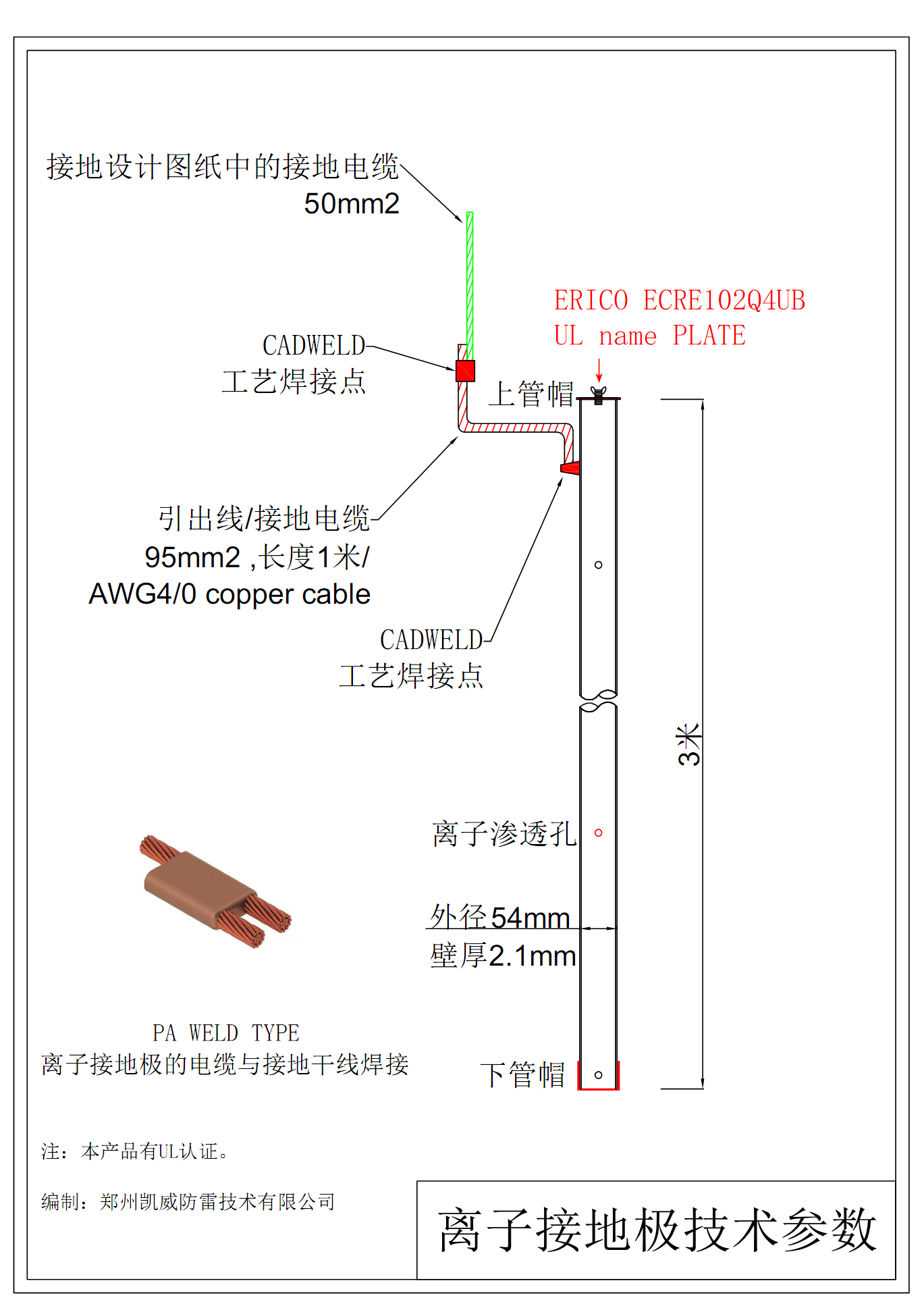

  • 2-1/8” (54 mm) outside diameter copper pipe with 0.083” (2.1 mm) wall
  • Available in continuous sections up to 10’ (3.05 m) in length; longer rods can be field assembled using 5’ (1.52 m) or 10’ (3.05 m) extensions
  • Optional factory-attached radial strips are available to reduce impedance to high-frequency lightning energy and to control the direction of the dissipation
  • L-shaped rods are available for horizontal installation applications where it is impractical to auger deep vertical holes
  • Access segment on horizontal (L-shaped) chemical ground electrodes is 32” (813 mm) deep

Product Specifications

Part Number ECRV102Q4UB
Material Copper
Installation Vertical
Length 3.05 m
Pigtail Length 1.22 m
Pigtail Orientation Up
Conductor Size 4/0 Str
Kit Included Yes
Standard Packaging Quantity 1 pc
UPC 78285675025
UNSPSC 39121613
ETIM EC000492

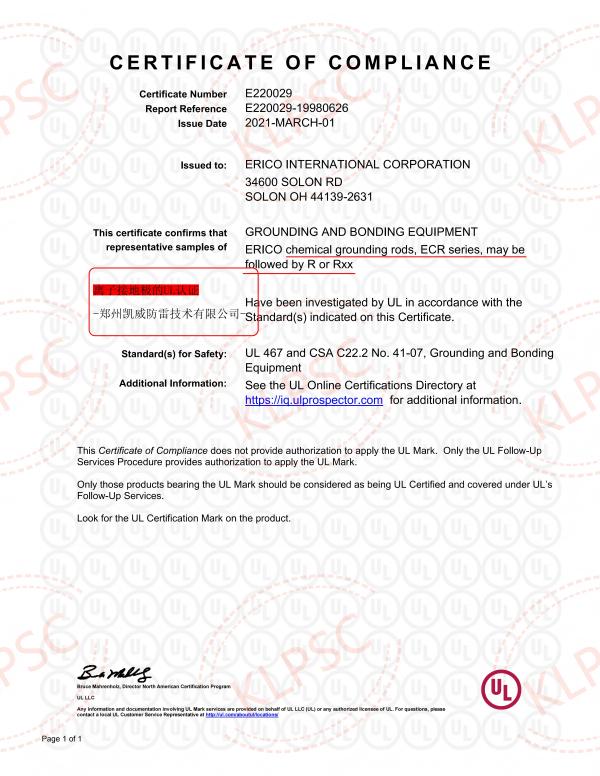

Certifications cULus

Chemical ground rods can be ordered as individual components or as a complete kit. Kits include the chemical electrode (pre-filled with electrolytic salts), one 25 lb (11.36 kg) bag of GEM, one 50 lb (22.68 kg) bag of Bentonite, and a high-density polyethylene inspection well.
